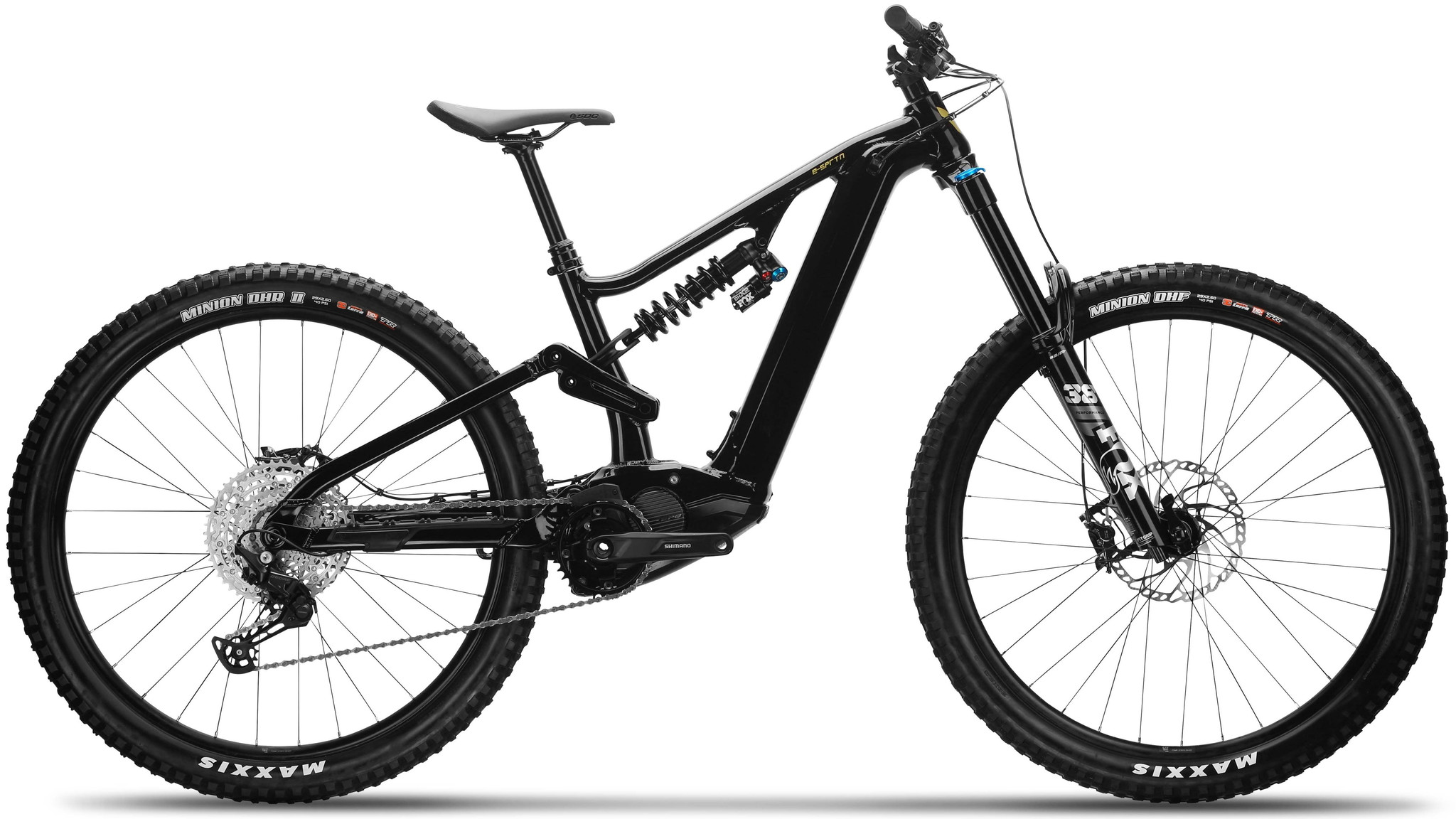

2022 Devinci eSpartan Deore 12s
Devinci eSpartan Deore 12s
HEAVY-HITTING, CHUNDER-LOVING MACHINE
Devinci’s e-Spartan salutes those about to rock with the kind of slack, aggressive roll you’d expect from the spawn of Spartan—and with the extra oomph of an e-equipped engine. Tame turbulent descents thanks to a generous 170mm of rear travel meets 180mm of finesse in the fork. And then turn around and hit turbo on the uphill. The Shimano EP8 engine boosts you to speeds of up to 32 km/h (limited to 25 km/h in Europe). Increase your range with the powerful 725Wh battery safely located in the downtube.
FEATURES
- Aluminum Optimum G04 frame with tire clearance for up to 29x2.6" tires, a molded chainstay protector, Boost spacing, internal cable routing, and a chain guide
- Shimano Deore 12-speed drivetrain performs excellently in demanding terrain
- Shimano XT 4-piston hydraulic disc brakes provide superior stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
Shimano STEPS EP8 motor with a 725Wh battery
E-MTB OPTIMIZED SPLIT PIVOT
Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.
NEW SHOCK LAYOUT
Improves clearance for the shock, bottle and motor, while an e-bike specific shock tune optimizes suspension kinematics.
IN-TUBE BATTERY
This lightweight solution keeps the battery safely tucked inside the downtube away from rocks and debris.
NEW 725WH BATTERY
Ultra long-lasting and powerful 725Wh battery uses the latest 21700 cell technology that holds 30% more energy. Designed for the rigours of mountain biking with a supported range up to 135km on one charge.
UPDATED GEOMETRY
Modern trail bike geometry featuring a longer reach and degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
Build Kit
| FRAME | Aluminum Optimum G04 |
|---|---|
| FORK | Fox Float 38 Performance E-Bike GRIP, 180mm Travel, 44mm Offset |
| REAR SHOCK | Fox DHX2 Performance Elite, 230x65mm |
| HEADSET | FSA SX Pro 1.5" Tapered |
| SHIFTERS | Shimano Deore M6100, 12-Speed |
| FRONT DERAILLEUR | Not Today |
| REAR DERAILLEUR | Shimano Deore M6100, 12-Speed |
| CRANKSET | Shimano STEPS EM600, 34T |
| BOTTOM BRACKET | - |
| CHAIN | Shimano Deore M6100 |
| CASSETTE | Shimano M6100, 10-51T MicroSpline |
| BRAKES | Shimano XT M8120/M8100 4-Piston, 203mm Rotors |
| WHEELSET | V2 Comp 29mm Inner TR Rims, Formula Boost TA Hubs |
| TIRES | Maxxis Minion DHF 29x2.5WT, 3C MaxxTerra EXO+ TR / Minion DHRII 2.4WT, 3C MaxxGRIP DoubleDown TR |
| HANDLEBAR | V2 Pro, 35mm Clamp, 25mm Rise, 780mm Wide |
| STEM | V2 Pro, 35mm Clamp, 40mm Length, 0° Rise |
| GRIPS/BAR TAPE | Devinci Performance, w/Lock-On |
| SEATPOST | V2 Comp, 30.9mm |
| SEATCLAMP | Bolt-Type |
| SADDLE | SDG Belair Max eMTB |
| INTENDED USE | Enduro, All-Mountain |
| MOTOR | Shimano STEPS EP800, 250W, 85Nm |
| BATTERY | BMZ 725Wh |
| DISPLAY | Shimano STEPS EM800 |
